Single Tube Telescoping Handle

Randall Edwards

Single Tube Telescoping Handle. A mechanism as set forth in claim 1 wherein said telescoping tube may be moved and locked in an extended position from a collapsed position relative to said socket tube by a.

Single Tube Telescoping Handle
surce: ebay.com

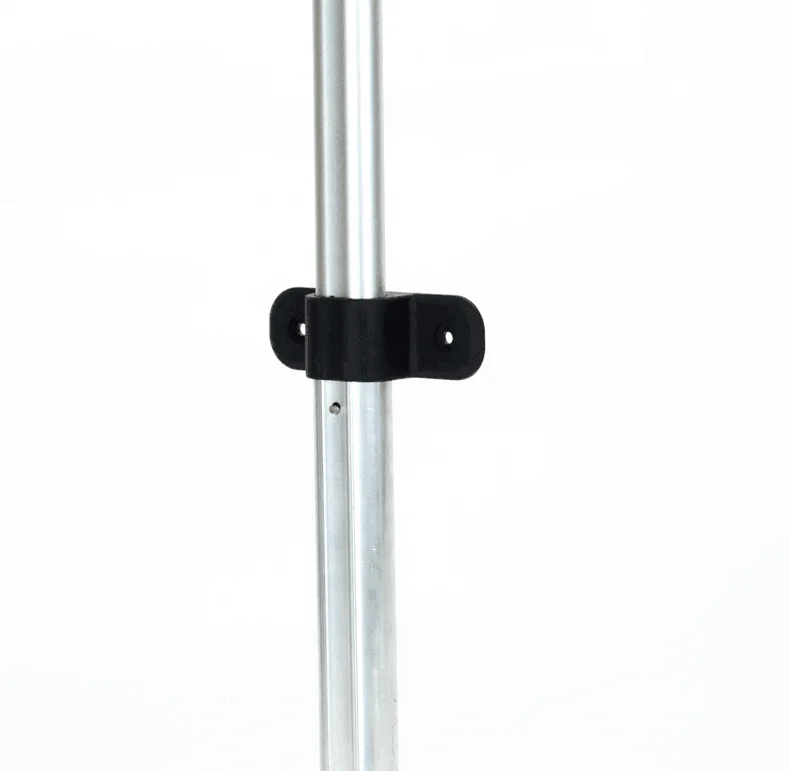

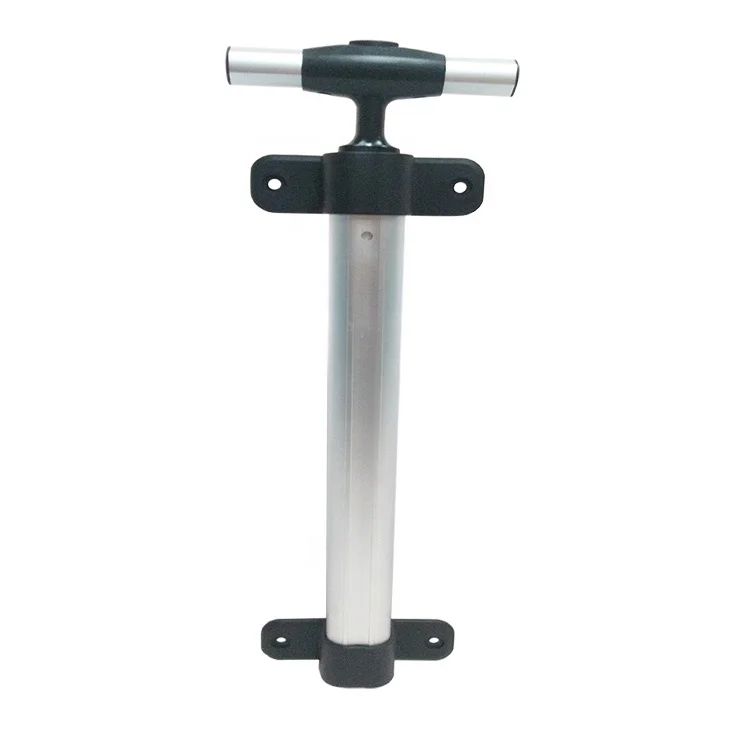

A single tube telescoping handle is a type of mechanical device used to extend and retract a rod-like structure. It is composed of an inner and outer tube, with the inner tube capable of sliding in and out of the outer tube. This allows the user to adjust the length of the handle as needed. The handle is typically made from a durable metal such as aluminum or stainless steel, and is often used in applications such as furniture, tools, and even medical instruments.

The single tube telescoping handle is composed of two parts: the inner tube and the outer tube. The inner tube is typically a hollow cylindrical tube with a smooth, sliding surface, while the outer tube is made of a thicker material and is designed to fit snugly around the inner tube. The inner tube is able to slide freely within the outer tube, allowing the user to adjust the length of the handle. When adjusting the length of the handle, the inner tube is held in place by a series of pins or locks, which keep the inner tube from sliding out of the outer tube.

In order to make the single tube telescoping handle, the inner and outer tubes are typically cut to the desired length and then welded or screwed together. The inner tube is then placed within the outer tube, and the pins or locks are installed to keep the inner tube from sliding out. It is important to ensure that the inner and outer tubes are cut to the correct size and that the welding or screwing is done correctly in order to ensure the handle functions correctly. After the handle is assembled, it is then tested for strength and durability.

Single tube telescoping handles are an ideal solution for applications that require adjustable handles or rods. They are lightweight, easy to install, and can be adjusted to suit a variety of needs. They also offer a great deal of flexibility, as they can be used to make handles of different lengths and can be adjusted quickly and easily. They are also highly durable, making them ideal for use in a variety of applications.

How to Install a Single Tube Telescoping Handle

  • Measure the length of the handle needed and cut the inner and outer tubes to the desired size.
  • Weld or screw the inner and outer tubes together.
  • Place the inner tube inside the outer tube.
  • Insert the pins or locks to keep the inner tube from sliding out.
  • Test the handle for strength and durability.

Single tube telescoping handles are a great solution for applications that require adjustable handles or rods. They are lightweight, easy to install, and can be adjusted to suit a variety of needs. They also offer a great deal of flexibility, as they can be used to make handles of different lengths and can be adjusted quickly and easily. They are also highly durable, making them ideal for use in a variety of applications.

Installing Locking Button in Telescoping Tube

Here is a quick video on how to install the locking buttons in telescoping tube. This is the 1" tube that fits inside 1 1/4"
